App tabs¶

Playlist tab¶

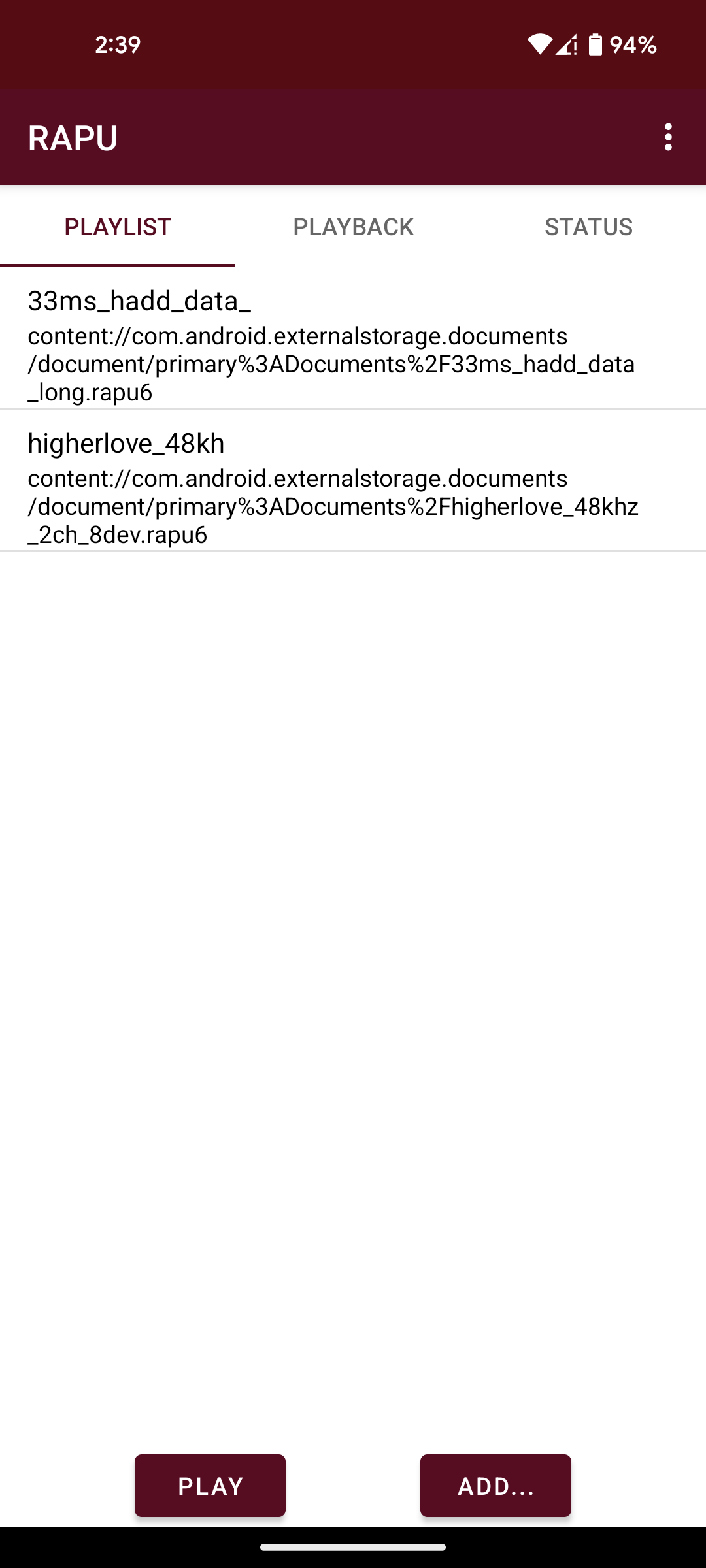

From the PLAYLIST tab, you can add routines, remove routines, and start and stop playback. Each routine is shown with its title (as set during Export) and the URI of the file on the local device.

Press ADD... to add a routine to the playlist. You can add any .rapu6 file on the local device, or download from the cloud (e.g., from Google Drive).
Press PLAY to playback all routines, in order.
To play a single routine, long press on the routine and select Play single.
To remove a single routine, long press on the routine and select Remove.
To remove all routines from the playlist, long press on the routine and select Remove all.

Playback tab¶

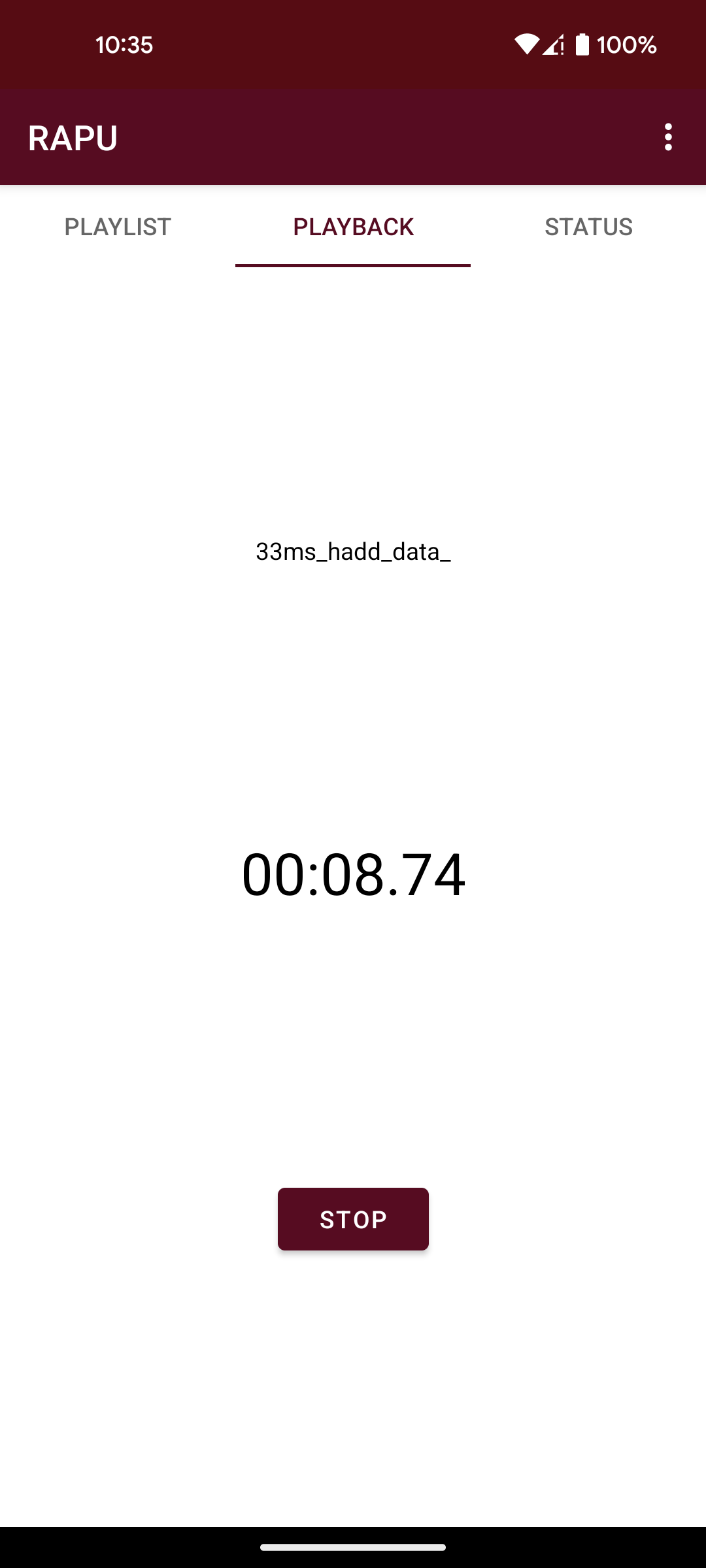

Once playback is started, the PLAYBACK tab will activated. You can press STOP at any time to halt playback.

Status tab¶

The Status tab shows various information about the RAPU’s current state. Most of this information will not be needed during regular operation, but may be requested by our technical support team.

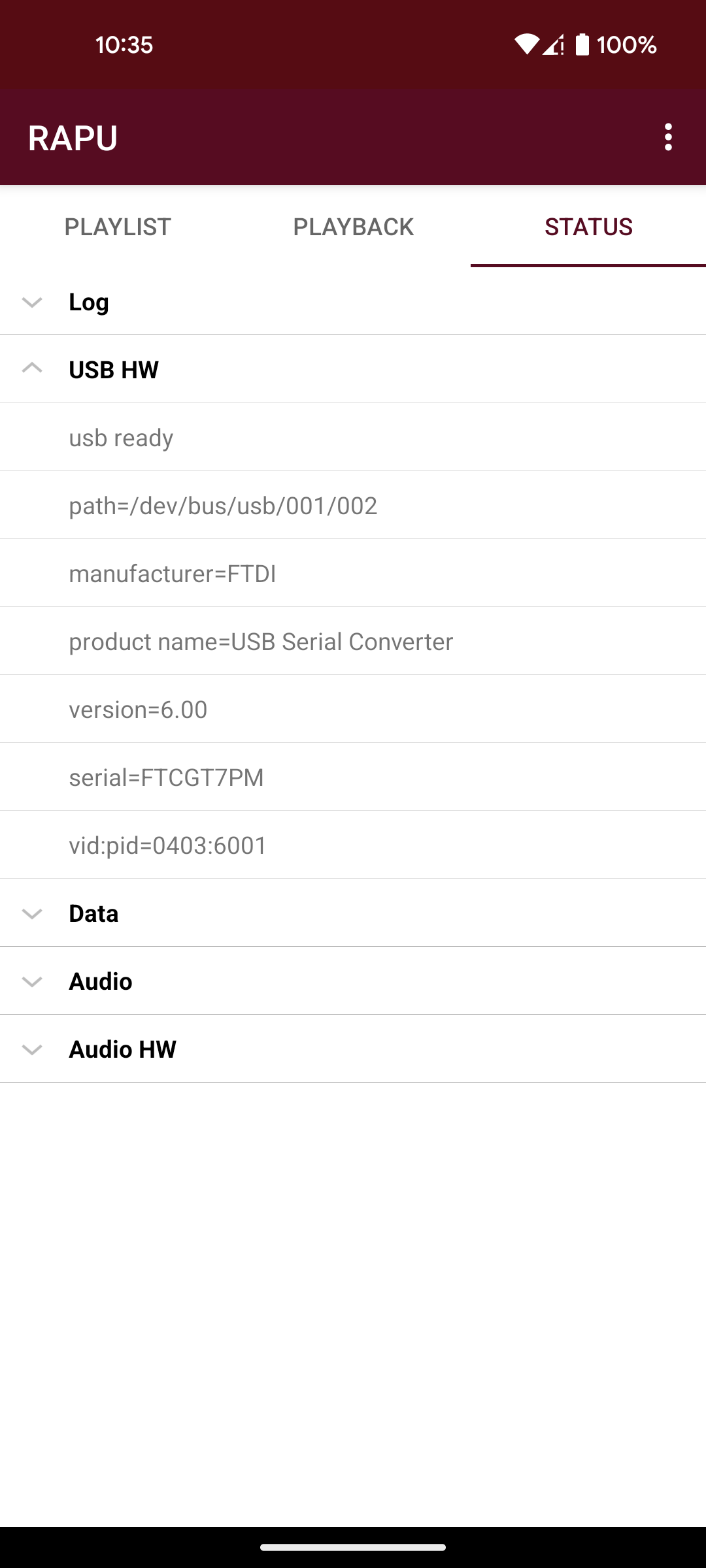

The USB device status can be viewed by expanding the USB HW list. A properly connected and recognized device will show usb ready in the first line, as shown below.

Error messages¶

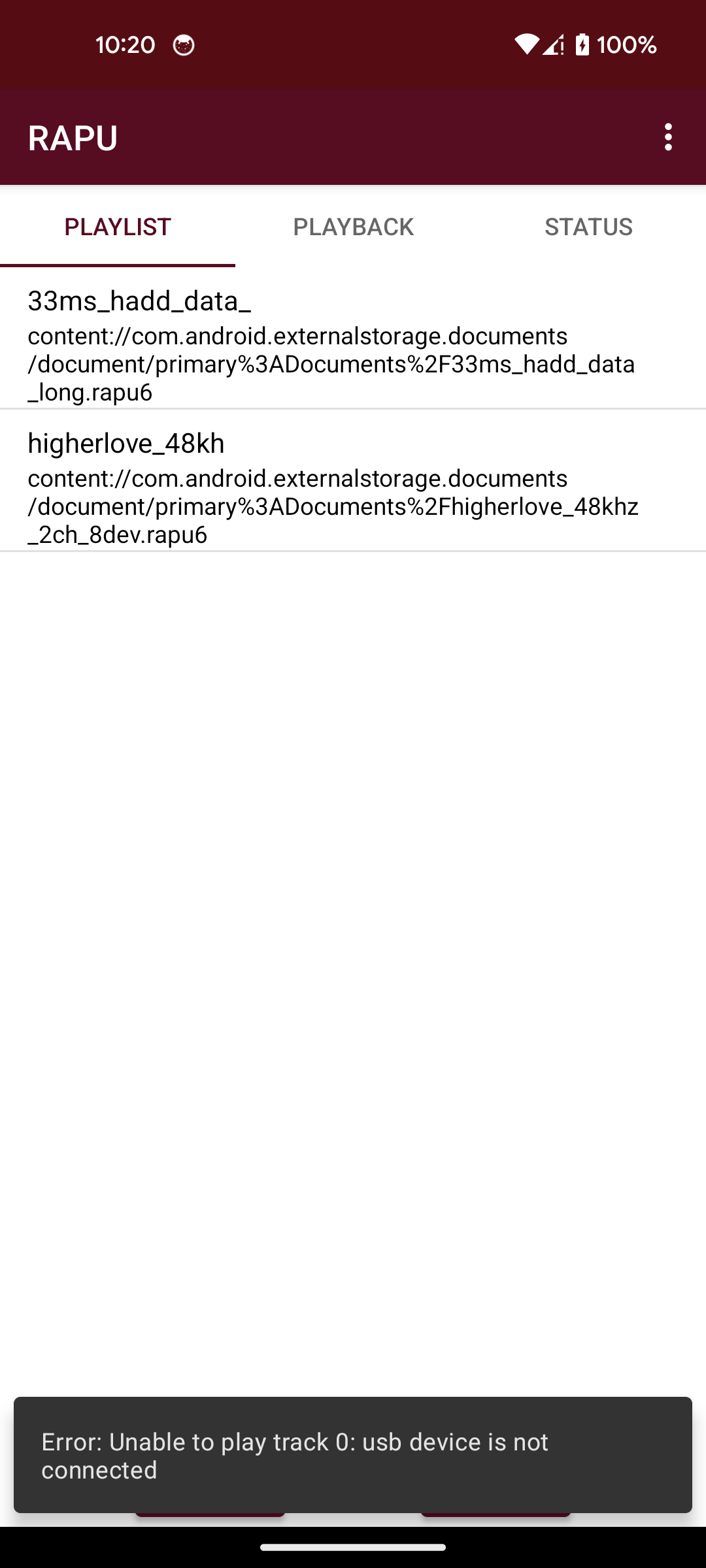

Error messages are reported via pop-up notification. In the example below, the error shows usb device is not connected indicating that the USB device needs to be connected or is not recognized properly.
