Introduction

Unpacking

Thank you for purchasing your new RAPU by Brookshire Software, LLC. Please visit our website at http://www.brookshiresoftware.com for the latest updates and documentation. When you first receive your RAPU, check to be sure the following items are included. If any items are missing, please immediately return the unit to the place of purchase.

Included items:

  • The RAPU v6.0
  • SD Card
  • Power supply

You will also need:

  • A WiFi enabled device (tablet, phone, laptop, etc.) from which to access the built-in webserver
  • Or, a monitor, keyboard, and mouse

The RAPU also requires that the servos, motors, relays and other control hardware be powered and operational. We suggest that you verify control hardware operation using VSA before migrating to the RAPU.

Connectors

_images/rapu6-connectors.jpg

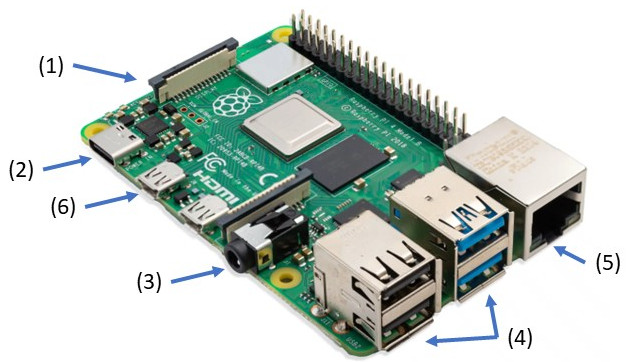

RAPU Connections
Connector Description
SD Card
USB-C power supply
Audio output
USB connectors. A single control device can be connected. Optionally, a keyboards, mouse, etc. can be connected.
Ethernet port. The built-in webserver can be access via wired Ethernet or via WiFi.
HDMI port. Optionally, an HDMI micro cable can be connected to a monitor.
